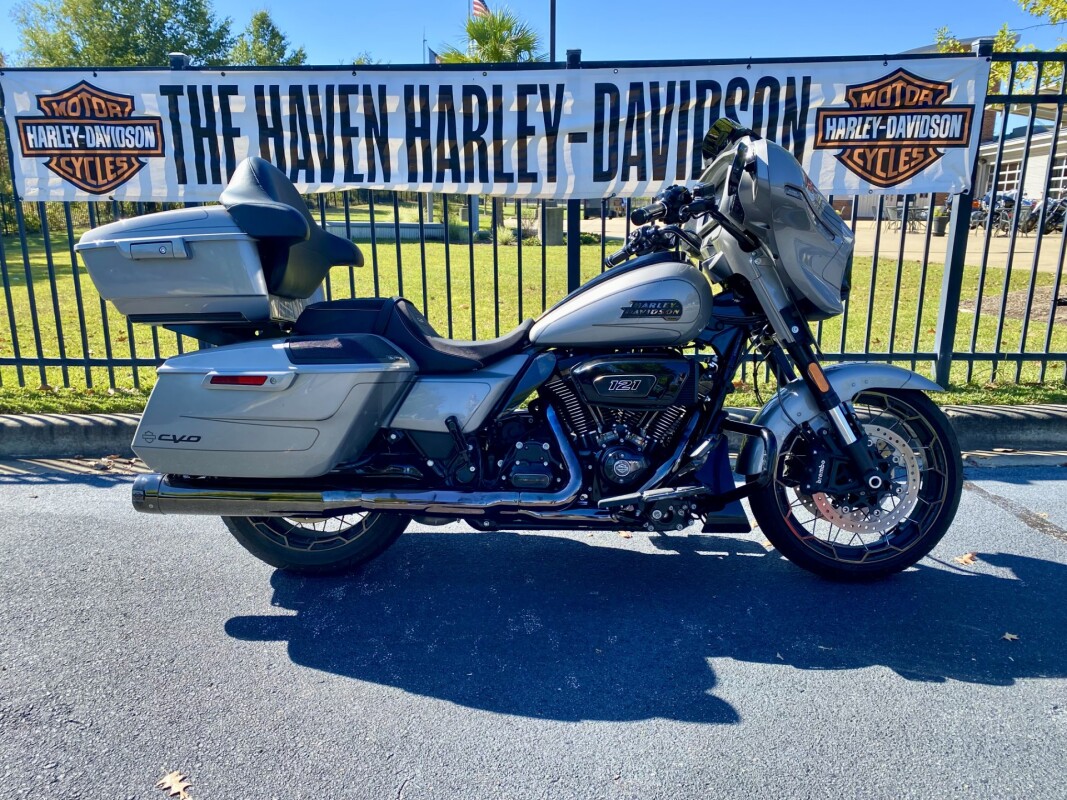

‹ Home › Inventory › 2023 Harley-Davidson CVO Street Glide Dark Platinum w/Pinstripe

Specifications

Dimensions

add remove
- Length:

  94.9 in
- Seat height, unladen:

  28.0 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  130/60B19 M/C 61H
- Tires, rear specifications:

  180/55B18 M/C 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  800 lbs
- Weight, in running order:

  838 lb
- Luggage capacity – volume:

  0.062 m³ (2.2 cu ft)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® VVT 121
- Bore:

  4.1 in
- Stroke:

  4.6 in
- Displacement:

  121.01 in³
- Compression ratio:

  11.4:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  135.0 ft-lb
- Engine torque (RPM):

  3500
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Wheels, front type:

  Combo Cast Laced
- Wheels, rear type:

  Combo Cast Laced
- Brakes, caliper type:

  32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear
Infotainment

add remove
- Infotainment system:

  Skyline™ OS
- Type:

  Full Color TFT
- Watts per channel:

  125
- Speakers:

  4
- Speaker size:

  Two 6.5in fairing speakers, and two 5x7in saddlebag speakers
- Headset specifications (if equipped):

  Harley-Davidson® Audio 30K Wireless or 50S Wireless Headset depending on configuration
- AM:

  Standard
- FM:

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  N/A
- Languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Standard (passenger headset sold separately), VOX is available for HD headsets
- Vehicle information screen:

  Standard
- USB:

  USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage.
- Bluetooth:

  Phone/Media Player, Headset
