Wide tires front and back. Classic Lakester cast aluminum wheels. The iconic steamroller stance, backed by a Milwaukee-Eight® 117 motor. LED lighting all around, Rider Safety Enhancements standard, and fine factory details that honor one of Harley-Davidson’s most legendary silhouettes. The 2026 Fat Boy is bold by design.

Specifications

  • Dimensions
    add remove
    • Length:
      93.1 in
    • Seat height, unladen:
      26.6 in
    • Ground clearance:
      4.9 in
    • Trail:
      4.1 in
    • Wheelbase:
      65.0 in
    • Tires, front specifications:
      160/60R18,70V,BW
    • Tires, rear specifications:
      240/40R18,79V,BW
    • Fuel Capacity:
      5.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      668 lbs
    • Weight, in running order:
      694 lb
    • Tire, type:
      Michelin® Scorcher 11 front and rear
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 117 Custom
    • Bore:
      4.1 in
    • Stroke:
      4.5 in
    • Displacement:
      117.35 in3
    • Compression ratio:
      10.3:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-2 staggered; catalyst in muffler
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      126.1 ft-lb
    • Engine torque (RPM):
      3000
    • Horsepower:
      103 HP / 77 kW @ 4800 rpm
    • Lean angle, right (deg.):
      25.6
    • Lean angle, left (deg.):
      25.6
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      47 mpg (5 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.311
    • Gear ratios (overall) 2nd:
      6.454
    • Gear ratios (overall) 3rd:
      4.793
    • Gear ratios (overall) 4th:
      3.882
    • Gear ratios (overall) 5th:
      3.307
    • Gear Ratios (overall) 6th:
      2.79
  • Chassis
    add remove
    • Front fork:
      Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
    • Rear shocks:
      Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
    • Wheels, front type:
      Machined, Lakester cast aluminum
    • Wheels, rear type:
      Machined, Lakester cast aluminum
    • Brakes, type:
      Front and rear silver, Split 7-spoke floating rotors
    • Brakes, caliper type:
      4-piston fixed front and 2-piston floating rear

Request Details

Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

While every reasonable effort has been made to ensure the accuracy of the information contained on this site, absolute accuracy cannot be guaranteed. This site, and all information and materials appearing on it, are presented to the user “as is” without warranty of any kind, either express or implied. All vehicles are subject to prior sale. Offer expires on the date posted unless otherwise stated. Not all buyers will qualify. Please contact dealership for more details.

All advertised prices include all dealer fees, but exclude government fees and taxes, any finance charges, license and registration fees. Vehicles shown at different locations are not currently in our inventory (Not in Stock) but can be made available to you are our location within a reasonable date from the time of your request, not to exceed one week.

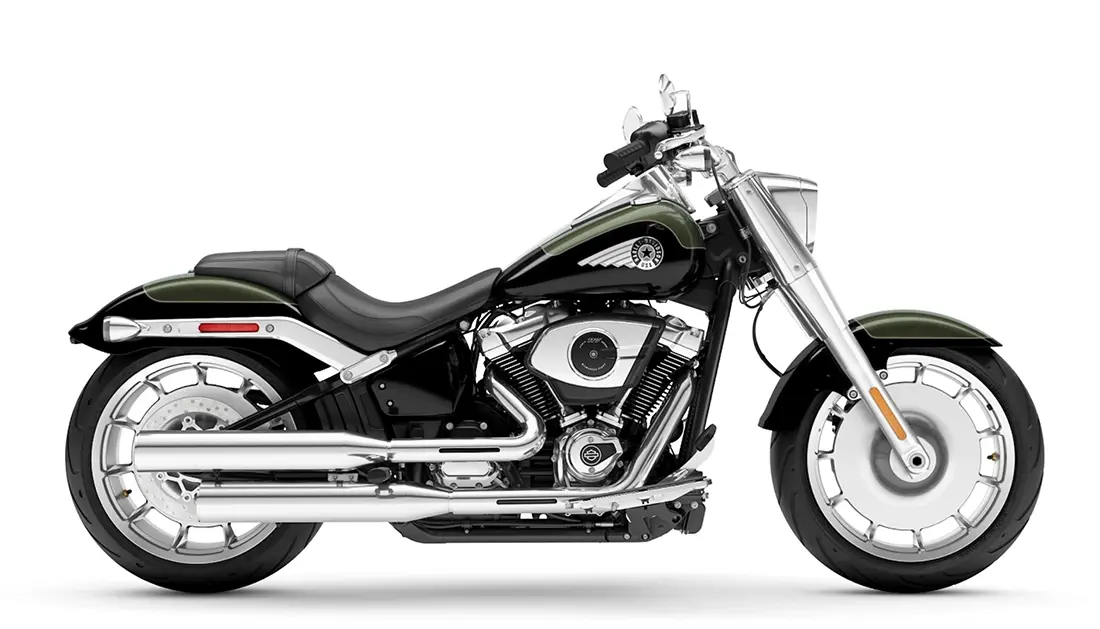

2026 Harley-Davidson® Fat Boy® Olive Steel Metallic / Vivid Black
